DBU-2328 IP

8-PORT RS-232 BROADCAST DEVICE WITH DUAL ETHERNET (STATIC IP)





Features / Benefits

  • Dual Ethernet Interfaces Two 10/100Base-T Ethernet ports for Network A and Network B paths.
  • Static IP Configuration Secure, deterministic operation with static IP addressing only.
  • Virtual COM Port Support RFC 2217 compliant for use with standard Virtual COM Port (VCP) software
  • 8-Port RS-232 Broadcast All RS-232 output ports transmit the same data from Server-A or Server-B connection via RTS/CTS
  • Industrial Reliability Designed for 24/7 operation in demanding public safety and mission-critical environments.
  • 110/220VAC Switch Selectable
  • Safety: meets new 62368-1
  • 1U Rackmount Chassis

Description

DBU-2328 IP, Modernizing Legacy Serial Infrastructure for Mission-Critical Networks

The DBU-2328 IP modernizes legacy RS-232 infrastructure by consolidating four separate hardware devices into a single, high-reliability appliance. Purpose-built for 911 and Next Generation 911 (NG911) environments, it provides secure Serial-over-IP connectivity with automatic dual-server redundancy to ensure continuous operation when every second matters.

Traditional redundant serial architectures typically require two IP-to-Serial adapters—one for the primary server and one for the standby server—along with a dedicated RS-232 Data Sharing Unit and an RS-232 Broadcast Unit. The DBU-2328 IP integrates all four functions into a single 1U rack-mounted platform, dramatically simplifying installation while reducing rack space, power consumption, cabling, and overall system complexity.

Featuring dual 10/100 Ethernet input interfaces, industry-standard RFC 2217 Virtual COM Port technology, and eight independent RS-232 output ports, the DBU-2328 IP seamlessly bridges legacy serial devices to redundant IP network servers without requiring changes to existing application software.

Designed for high availability, the unit employs hardware-based RTS/CTS arbitration to automatically manage active and standby server connections. If the primary server becomes unavailable, communications are automatically transferred to the standby server without operator intervention, providing a transparent migration path from legacy serial architectures to today's IP-based mission-critical networks.

Why Upgrade?
·         Replace four separate devices with one integrated 1U appliance.
·         Eliminate two IP-to-Serial adapters, one RS-232 Data Sharing Unit, and one RS-232 Broadcast Unit.
·         Reduce rack space, cabling, installation time, and power consumption.
·         Lower system complexity and maintenance costs.
·         Automatic primary-to-standby server failover using hardware RTS/CTS arbitration.
·         Industry-standard RFC 2217 Virtual COM Port support.
·         Preserve existing RS-232 equipment while enabling modern IP-based connectivity.
·         Designed for 911, NG911, public safety, transportation, and other mission-critical applications.
·         FIP-3 Compliance
·         3-Year Warranty and Support







SPECIFICATIONS

Application

The DBU-2328 IP securely connects legacy RS-232 devices to NG911 networks using dual Ethernet ports and industry-standard Virtual COM Port technology.

ETHERNET INTERFACES

Ports

2 x 10/100Base-T (A and B)



Connector

RJ-45

Configuration

Static IP only

Protocols

TCP/IP

Indicators

Link/Activity (per port)

RS-232 OUTPUT INTERFACES

Ports

8 (Broadcast)

Connector

DB-25 Female

Signals Supported

RXD, RTS, CTS, DCD

Data Rates

Up to 19.2 Kbps

Power Source 100-120Vac, 0.16A or 200-240Vac, 0.08A, 50-60Hz, external 110/220 volt select switch, IEC Power Inlet, (2) 5mm Fuses
Parity

8, N , 1

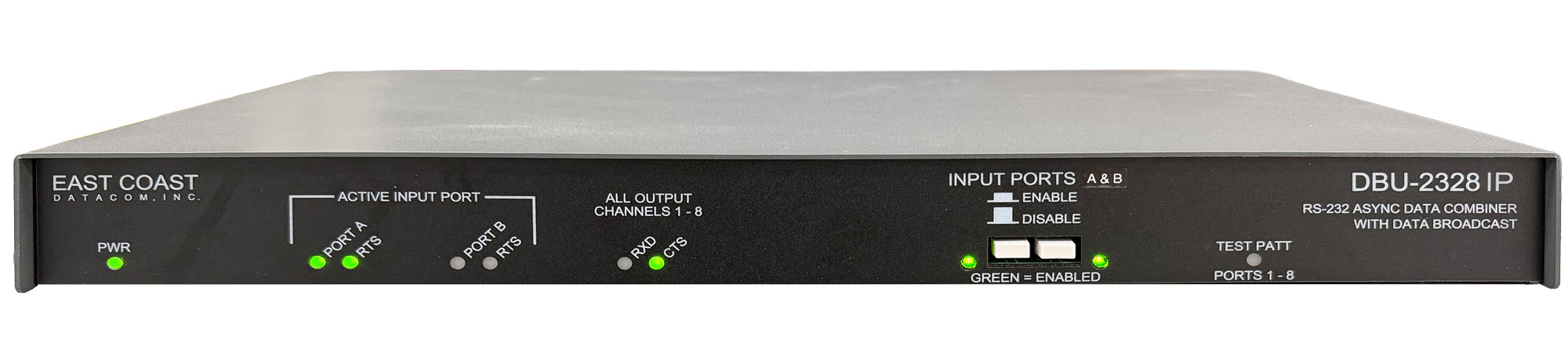

LED INDICATORS (FRONT PANEL)

PWR

Power

Port-A/ B RTS

RTS Status for Port A and Port B

Active

Ethernet Activity

Test Patt.

Test Pattern Active

RXD

Receive Data

CTS

Clear To Send

INPUT PORTS (A & B)

Enable / Disable

Per Port

Connector

RJ-45

Indicator

Green = Enabled

POWER

Input Voltage

90-240 VAC, 50/60 Hz

Power Consumption

Less than 3 watts totaI

Connector

IEC 60320 C14

ENVIRONMENTAL

Operating Temperature

0•C to +50•c

Storage Temperature

-20•C to +70•C

Humidity

5% to 95% non-condensing

MECHANICAL

Form Factor

1U Rackmount

Dimensions

19.0" W x 7.0" D x 1.75" H
(482.6 x 177.8 x 44.5 mm)

Weight

6.0 lbs (2.7 kg)

Mounting

19" Rack Ears Included

PROTOCOLS

TCP/IP

RFC 793

VIRTUAL COM PORT

RFC 2217

COMPLIANCE & SAFETY

Safety

UL-62368-1

EMC

FCC Part 15 Class A

Security Features


TPM 2.0 chip with FIPS 140-3 Level 2 compliance

ORDERING INFORMATION

Part Number 310000
Model

DBU-2328 IP

Warranty Three Years, Return To Factory
Ordering Information Part Number: 310000
Model: DBU-2328 IP
8-Port RS-232 Broadcast Device with Dual Ethernet (Static IP)

Included with each unit: 1) Operations Manual
2) U.S.A. Grounded Power Cord, Part # 713015
3) 1U Rackmount ears, PT# 702037
4) 0.080ma Fuse, Qty (2) Part # 714001
