Remote Secure Console Server



FEATURES / BENEFITS

• Remote Secure Console Server via SSL Web Browser

• Supports Unlimited Remote Sites

• Transports Async Serial Communications over a 10/100 Ethernet Network

• Async Data Rates - 1200bps to 115.2Kbps for Simultaneous 4-Port Operation

• Serial Interface - Four RS-232 Ports on RJ-45 Connectors

• LAN Interface - 10/100Base-T on RJ-45

• Supports Twisted Pair Crossover Detection and Auto-Correction (HP Auto-MDIX)

• Secure SSL Encryption

• Straight-through CAT-5 cabling for Easy Connection

• Log Off, Location I.D. feature and supports DHCP

• Firmware Upgrades via 10/100 LAN Port

• Extends Management Capabilities to Remote Devices

• AC or DC Power Supply Options

• 1U Rackmount Enclosure
 .
DESCRIPTION

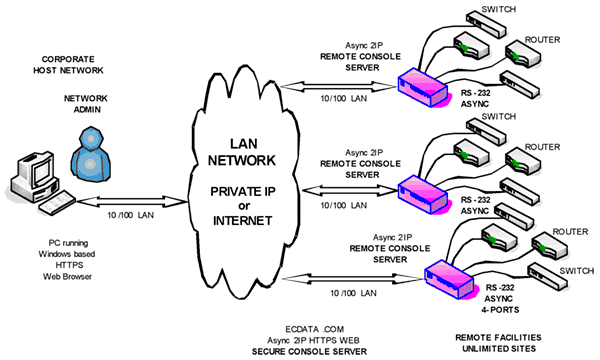

The Async2IP_WEB remote secure console server allows network administrators to securely control and monitor remote routers, switches and servers over the corporate TCP/IP network using secure SSL encryption and password protection. The Async2IP_WEB allows remote management of async serial ports using an HTTPS encrypted web browser at the host site. The user interface is presented as a terminal screen with a command prompt on a web based GUI interface. No additional hardware or software is required at the host site and the Async2IP_WEB supports an unlimited amount of remote sites.

Local IT administrators can gain fast access to remote IT problems without sending expensive service personnel to trouble shoot a problem site. The Async2IP_WEB provides a significant return on investment with fast problem solving capabilities producing higher network uptime.

Installation is fast and simple with the built in Async2IP_WEB GUI interface. Each terminal port session is presented on its own GUI Window. The Async2IP_WEB has a 10/100 LAN port that supports twisted pair crossover detection and auto-correction (HP Auto-MDIX). The unit has four async RS-232 data ports presented on RJ-45 connectors. The RJ-45 pin-out allows low cost CAT-5 cable connections with straight through cables to Cisco routers/switches asynchronous command ports.

The Async2IP_WEB unit’s system firmware upgrades are accomplished via the 10/100 LAN port. After completion of the firmware upgrade the Async2IP_WEB will reset itself and resume normal communications. No system software is required to be installed on the user’s network or workstations for operation of the Async2IP_WEB.

The Async2IP_WEB is housed in a sturdy 19 inch 1U high chassis and has a 90-120 VAC power supply. Additional power supplies of 90-240VAC or 36 to 72 Volts DC are also available.

The Async2IP_WEB has a 3-year warranty and a 24 hour turnaround on warranty repairs.



SPECIFICATIONS
ARE SUBJECT
TO CHANGE
WITHOUT NOTICE









For further detailed
technical information
on this product,
contact East Coast
Datacom Technical
Assistance at

(321) 637-9922

or fax us at

(321) 637-9980









DOC # 721019


SPECIFICATIONS
Application Remote Secure Console Server, 4-Port RS-232 Serial port management via Ethernet with a secure SSL Web Browser
Capacity Up to Four Serial Async Ports converted to one 10/100 Base-T LAN Port
Interface

RS-232 on RJ-45’s, Async, 8, N, 1(10 bit)
LAN: 10/100 Base-T, RJ-45 with DHCP Support
Data Rates

Serial Data:1200 bps to 115.2 Kbps for simultaneous 4-Port operation
LAN: 10/100Mbps
Data Format Data transparent at all data rates
Serial Buffer 2048 bytes
Configuration Encryption
 Via SSL Encrypted Web Browser Interface, supports SSL v3
User Configuration
 Stored in Flash memory
Firmware Upgrades
 Upgraded via 10/100 LAN Port
Indicators
 System: Green or Yellow
Peer: Green or Yellow
Port 1: Green or Yellow
Port 2: Green or Yellow
Link: Green
Activity: Yellow
Power Source AC Power Option: 90-120VAC 50Hz or 90-240VAC, 50/60Hz, external 110/220 select, IEC Power Inlet
DC Power Option: DC Voltage, Input Range of -36 to -72vdc,
Environmental

Lead Free: RoHS Compliant
Operating Temp: 32º to 122º F (0º to 50º C)
Relative Humidity: 5 to 95%Non-Condensing
Altitude: 0 to 10,000 feet
MTBF – Telcordia Issue 1
 AC Powered: 371,246 hours
DC Powered: 330,734 hours
Dimensions

Length ....... 3.22inches (8.18 cm)
Width ........ 19.00 inches (48.26 cm)
Height ....... 1.75 inches (4.44 cm)
Weight
 2 pounds (0.97 Kg)
Warranty
 Three Years, Return To Factory
Ordering Information:

PT# 183000
Model: Async2IP_WEB
Desc: 4-Port Remote Secure Console Server
Power Supply Options

PT# 180062

Model: AC 110VAC
PT# 180070
Model: AC 110/220VAC

PT# 180074
Model: DC 36-72VDC
Included with each unit:
 1)  Installation Guide

For further detailed technical information on this product, contact East Coast Datacom Technical Assistance toll free at (800) 240-7948.
